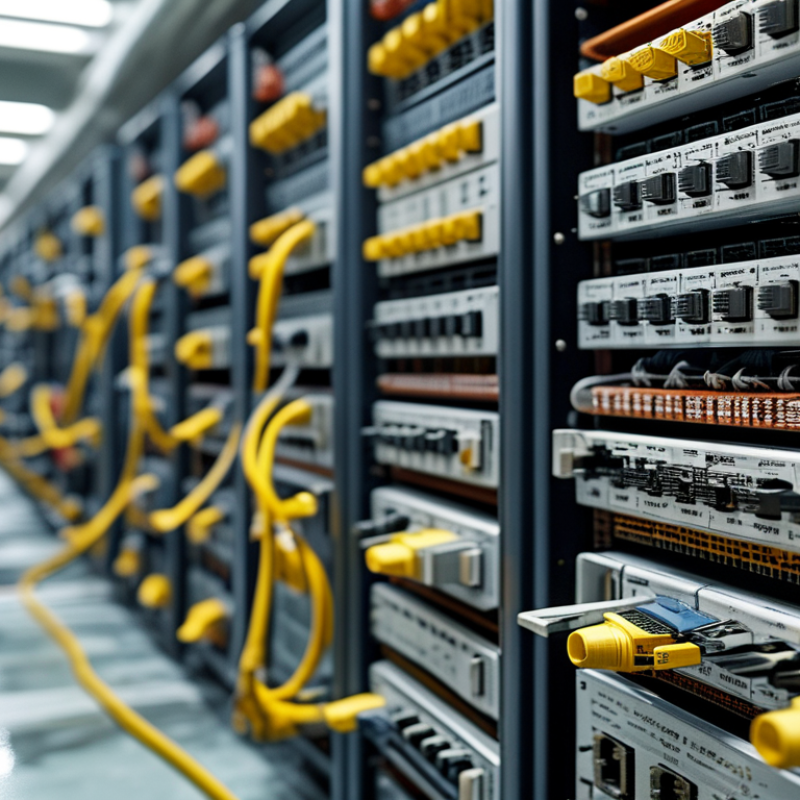

How to Choose the Right Fibre Optic Infrastructure?

Choosing the right fibre optic infrastructure is not simply a matter of selecting the fastest cable. It requires a careful connection between present demands, future growth, site conditions, and maintenance capability. A reliable design should support stable data transmission across offices, factories, campuses, or data centres. It should also remain practical when technicians need to test, repair, or expand it.

Experience shows that small details often determine long-term performance. A site survey can reveal tight pathways, heat exposure, moisture, or limited cabinet space. These conditions influence the choice between single-mode and multimode fibre. They also affect connector types, patch panels, cable protection, and bend-radius planning. OTDR testing, visual inspections, and accurate labelling can identify faults before they disrupt operations. Good documentation matters more than many teams expect.

No design is perfect. A solution built only around today’s bandwidth may become expensive within a few years. However, overspending on unused capacity can also weaken a project’s business case. The right balance depends on traffic forecasts, equipment compatibility, installation distance, and available technical support. Industry standards and qualified installers provide useful safeguards, but they cannot replace site-specific judgment. Fibre optic infrastructure should therefore be evaluated as a complete system, not as a collection of isolated products. A thoughtful selection process reduces risk, simplifies maintenance, and leaves room for realistic improvement.

Table of Contents [Hide]

1 Define Capacity Needs: 10G, 100G, 400G, and Future Bandwidth Growth

2 Select Single-Mode or Multimode Fiber by Distance and Speed Limits

3 Compare OS2, OM4, and OM5: Up to 10 km, 100 m, and 150 m

4 Plan Connector Density, Loss Budgets, and the 0.35 dB/km OS2 Standard

5 Verify Compliance with ISO/IEC 11801, TIA-568.3-D, and Safety Requirements

Define Capacity Needs: 10G, 100G, 400G, and Future Bandwidth Growth

Capacity planning starts with traffic, not a tempting port speed.

The ITU Facts and Figures 2023 report estimated 5.4 billion people were online, representing 67% of the global population.

Its 2024 report estimated 5.5 billion users, or 68%.

This steady expansion affects access networks, cloud services, video, and AI workloads.

A 10G link may suit a small office or short-term demand. A 100G uplink fits dense campuses, data centres, and aggregation layers. Choose 400G when traffic is concentrated, expansion is near, or backbone paths need fewer parallel links.

Do not size only for today’s average. Measure busy-hour throughput, east-west traffic, failover load, and cabinet growth. Fibre count, connector loss, transceiver reach, and switch slots must align.

IEEE 802.3 defines several 400G physical-layer options, but compatibility is never automatic. A 400G optic may be excessive on a quiet link. It may also protect limited rack space later.

That trade-off deserves numbers, not optimism. Forecasts can fail when seasonal peaks are ignored.

Tips: Build three-year and five-year models. Test measured growth, plus 30% and 50% annual scenarios. Leave spare fibre pairs and rack space. Validate optics and patching in a lab before deployment.

A 100G design may be wiser than premature 400G capacity. Sometimes, restraint is the more future-ready decision.

Select Single-Mode or Multimode Fiber by Distance and Speed Limits

How to Choose the Right Fibre Optic Infrastructure?

Select Single-Mode or Multimode Fiber by Distance and Speed Limits

Choosing fibre begins with the link distance, not the cable color or cabinet layout. Multimode fiber suits shorter connections inside buildings, data rooms, and campus networks. It uses larger cores, which simplify light coupling and equipment installation. However, its bandwidth decreases as distance increases. A 40-gigabit link may work well across a short row, but fail across an older, longer pathway.

Single-mode fiber supports much greater distances and higher capacity. Its narrow core reduces modal dispersion, keeping signals cleaner over many kilometers. It is often the safer choice for inter-building links, backbone routes, and future upgrades. Yet, single-mode equipment can require more precise alignment and careful power-budget checks. It is not automatically the best option for every room.

I once saw a short office link specified with single-mode fiber because it sounded more advanced. The result was reliable, but unnecessarily costly. The opposite mistake can be worse.

Multimode fiber may fit today’s distance, then restrict tomorrow’s speed. Check the transceiver limits, connector quality, bend radius, and total link length together. Leave room for patch panels and service loops. Standards help, but real installations rarely match drawings perfectly. Measure twice. Then review the upgrade plan before selecting the fibre type.

Compare OS2, OM4, and OM5: Up to 10 km, 100 m, and 150 m

Choosing fibre optic infrastructure starts with distance, speed, and upgrade plans. The cable label alone is not enough. According to ISO/IEC 11801 and IEEE 802.3 specifications, OS2 single-mode fibre can support 10 Gb/s links up to 10 km under suitable transceiver conditions. It is a practical choice for campus backbones, long building connections, and data-centre interconnects. However, connector quality, splice loss, and optical power budgets still matter.

A 10 km rating is not a promise for every installation.

OM4
OM4 multimode fibre commonly supports 100 Gb/s transmission up to 100 m with parallel optics, according to IEEE 802.3 and TIA-568.3-E guidance. That distance fits many modern server rooms. It also keeps short-reach equipment relatively simple.

OM5
OM5 extends the stated reach to 150 m for selected shortwave wavelength systems, including 100 Gb/s SWDM applications. The extra distance can help in larger halls, but only when compatible optics and standards are used. Otherwise, OM5 may add cost without adding useful performance.

A neat distance table can mislead. I have seen designs choose OM5 for prestige, while the actual cable run was 35 m.

Measure the installed path, not the floor plan. Leave room for patch panels and future moves.

Check polarity, insertion loss, bend radius, and transceiver compatibility before ordering. Those details often decide whether “up to 10 km, 100 m, or 150 m” becomes dependable capacity or an expensive assumption.

Plan Connector Density, Loss Budgets, and the 0.35 dB/km OS2 Standard

How to Choose the Right Fibre Optic Infrastructure?

A reliable fibre design starts with the loss budget, not the cable reel. For OS2, many projects use 0.35 dB/km as a planning value, especially across modern single-mode links. Confirm the required wavelength and local specification before treating it as universal. A 2 km route would allocate about 0.70 dB for fibre attenuation alone. Connectors, splices, bends, and ageing still consume the remaining margin.

Connector density needs equal attention. High-density panels save rack space, but every adapter introduces insertion loss and cleaning requirements. Count planned connections at both ends, then include cross-connects added for future moves. In field reviews, crowded panels often created more risk than the cable itself. I once underestimated service loops. The route worked, but maintenance became awkward. That mistake still deserves review.

Tips: Keep a written loss budget beside the rack. Use conservative connector values, label every fibre, and test installed links with an OLTS. Use OTDR traces to locate unexpected events, but do not treat one trace as complete proof. Check end-face cleanliness before testing. Small contamination can distort decisions. Leave practical reserve, even when the spreadsheet looks comfortable. Specs change. Habits should change too.

Verify Compliance with ISO/IEC 11801, TIA-568.3-D, and Safety Requirements

Choosing fibre optic infrastructure requires more than comparing fibre types or connector prices. Verify that the design aligns with ISO/IEC 11801 for generic cabling and TIA-568.3-D for optical fibre systems. Check the applicable edition for your project, because standards and local requirements can change. A compliant design should define fibre category, polarity, connector performance, pathway capacity, and maximum channel length.

Ask for measurable evidence, not broad claims. Installation records should include insertion-loss results, return-loss readings, and OTDR traces where appropriate. Test equipment must have current calibration records. Inspectors should also confirm labels at both ends, protected splices, correct bend radii, and sealed pathways. A neat rack can still hide a failed link. That happens.

Safety verification must cover more than cable placement. Confirm fire performance, smoke characteristics, pathway separation, grounding for related metallic components, and safe access around active optical ports. Technicians should use suitable eye protection and never inspect a live fibre end directly. Local building, electrical, and workplace rules may add stricter conditions. Document every exception, even small ones. It may seem unnecessary. Later, that detail can explain an unexplained test failure or difficult maintenance decision. A final review by a qualified designer or independent tester improves reliability, although no checklist catches every mistake.
